Broader and better applicability
Lead advantages in performance and price
Comprehensive bag emptying solutions

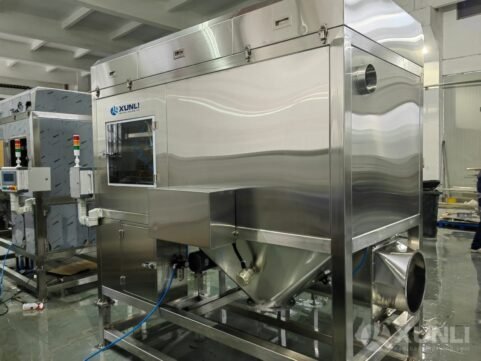

STAB-850 SMALL BAG SLITTER
STAB-850 handles 10+ bag types with single-blade cutting. 99.95-99.99% emptying for pellets, 99.8-99.95% for powders. Ideal for chemical, food, and pharmaceutical industries. ISO-certified since 2016.
Key Specifications:

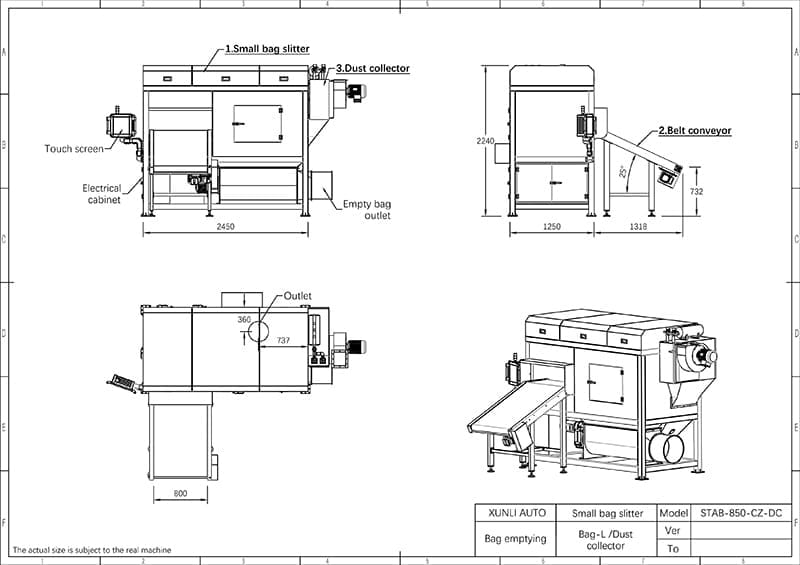

| Measures: | Width 1.25m * length 2.45m, height 2.24m |
| Energy consumption: | 2.2kwh/3.2KW; max150L/min/0.6mpa |
| Emptying rate/capacity: | About 99.8%-99.99% emptying rate with 100-150 bags/hour |
| Suitable for material: | Most powder, granule and pellets material |
| Suitable for bag: | Almost all kinds of bags and sacks |
| Weight: | Around 1.2 ton, use 3 ton forklift to move the machine |
| Bag specification: | Suitable for outer length 550-850mm, width 350-550mm, height 100-200mm range |
How It Works:

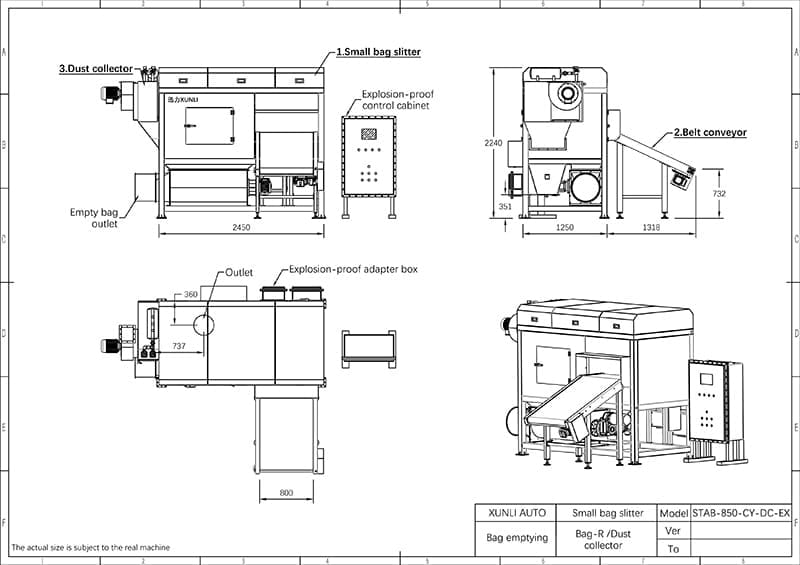

1. Belt conveyor feeds bags into the machine. 2. Internal gripper grasps and moves bags. 3. Single blade cuts bags from the bottom. 4. Materials fall into hopper by gravity. 5. Human-simulating shaking mechanism ensures complete emptying. 6. Empty bags are automatically compacted and collected. This machine can explosion-proof configuration, stainless steel configuration or customized for different working conditions.Download STAB-850 brochure to get details.
Simulating human movement to empty the bag
The machine is designed to simulate human movement to cut and empty the bags, which enable this machine capable of handle almost all different kinds of bags in different sizes with high emptying rate.
Can handle different bags by one machine
| Film-coated woven bag | Paper-plastic composite bag |
| Plastic bag | Paper bag |
| Ordinary Woven Bag | Tie closure bag |
| Vacuum bag | Foil bag |
| Single-layer bag | Multi-layer bag |
One piece of blade: This automatic small bag emptying machine use a piece of blade in the process of bag cutting under most case for single-layer bags, for multi-layer bags, one more blade can be added to improve the emptying rate.
Near 0 bag debris: Non-tied bags in the form of single-layer bag, including plastic bags, coated woven bags, using a piece of blade in the process of bag cutting, almost no bag debris generated.
If you are chemical enterprise like LIPON, ETERNIT, you have many different material in different sacks, which are in different size, different bag material, and different bag structure, but you need to empty these bags with one machine to dose each batch of the different materials, XUNLI small bag slitter is the best choice, there is no any other similar small machine can apply to some many differences.
