Broader and better applicability
Lead advantages in performance and price
Comprehensive bag emptying solutions
LAB-1350 LAYER BAG SLITTER
LAB-1350 Layer bag slitter: Average bag emptying rate higher than 99.98% while at high speed; Smaller footprint; More flexible layout; More stable and functional.
Parameters for: LAB-1350 standard unit
| Measures: | Width 1.8m * length 4.63m, height 3.96m |
| Energy consumption: | 7kwh/10KW; max150L/min/0.6mpa |
| Emptying rate/capacity: | About 99.98%-99.99% with max 650 bags/hour |
| Suitable for material: | PP, PE, HDPE and other pellets material |
| Suitable for bag: | Plastic, paper, laminated woven bag., etc. |
| Weight: | Around 3.5 ton, use 5 ton forklift to move the machine |
| Pallet specification: | Suitable for outer length and width1.1-1.35MM range, height below 2.2M |
Equipment description

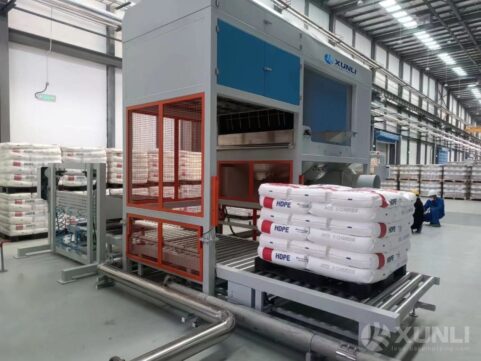

The working process of this automatic bag emptying machine:after one pallet of sacks put into the machine, the bag catching device inside the machine will descend to catch top layer of sacks from the pallet layer by layer, and carry the sacks forward inside the machine, during the moving process, a row of blades cut open the bags from the bottom, the emptying device will shake to clean out the material thoroughly from the bag above the hopper, in the end the empty bags will be collected and extruded out by the empty bag compactor. For normal LAB-1350 standard model bag emptying machine, the capacity can reach to 650bags/hour, and it can be accelerated to 750bags/hour by the using servo motor at the same time with high emptying rate.
If you are blown film enterprise like Berry Global, you don’t want to get the bag debris mixed into the material, XUNLI Layer bag slitter is the best choice, it is guaranteed that there is near 0 bag debris will be mixed into the material. BERRY Global made the right choices four times to choose XUNLI Layer Bag Slitter for their production.

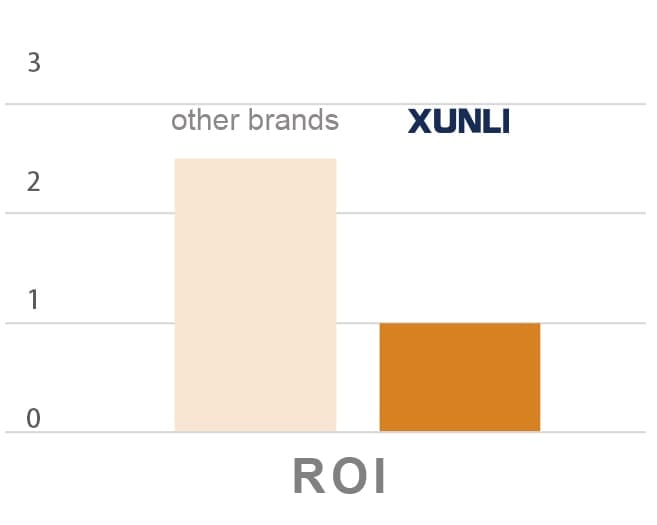

XUNLI Lead advantages comparing with other brands
- Above 99.98% with 600 bags/hour in most cases
- Near 0 bag debris into the material
- In most actual operating conditions, the equipment works properly
- Size is smaller with smaller footprint
- More flexible on layout of the machine to better fit your space
- Installation can be finished within one day
- Use welding process as much as possible to reduce the risk of screws falling out
