Broader and better applicability
Lead advantages in performance and price
Comprehensive bag emptying solutions
RAB-Series DRUM SCREEN BAG SLITTER
RAB-Series Drum screen bag slitter: Can handle almost all kinds of bags which are different in size, bag structure, bag material with high capacity over 1000 bags /hour, it can be equipped with flip device to handle pallet sacks, for pellet material average bag emptying rate around 99.95%-99.99%, for powder material average emptying rate around 99.5%-99.99%.

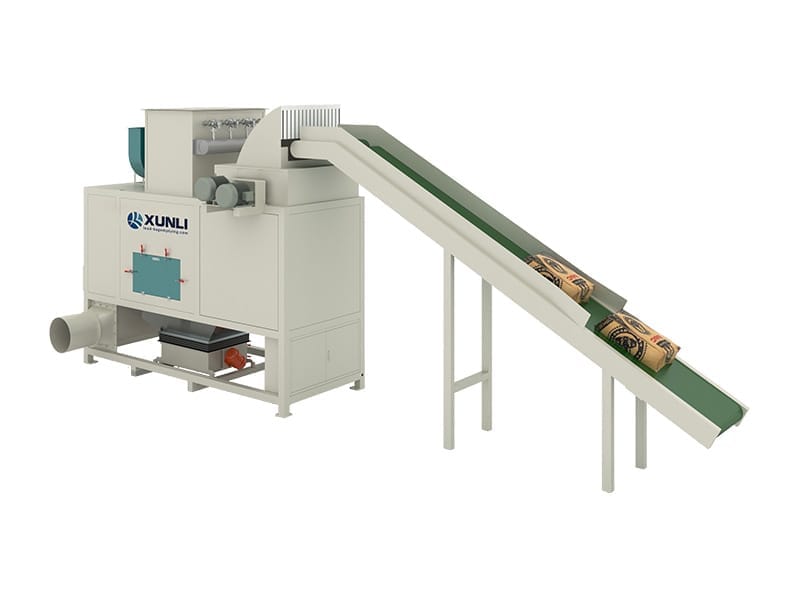

Parameters for: RAB-1350 standard unit
| Measures: | Width 1.66m * length 3.8m, height 3.6m |
| Energy consumption: | 7kwh/10KW; max 50L/min/0.5mpa |
| Emptying rate/capacity: | About 99.5%-99.99% emptying rate with 600-1000 bags/hour |
| Suitable for material: | Most powder, granule and pellets material |
| Suitable for bag: | Almost all kind of bags and sacks |
| Weight: | Around 3.5 ton, use 5 ton forklift to move the machine |

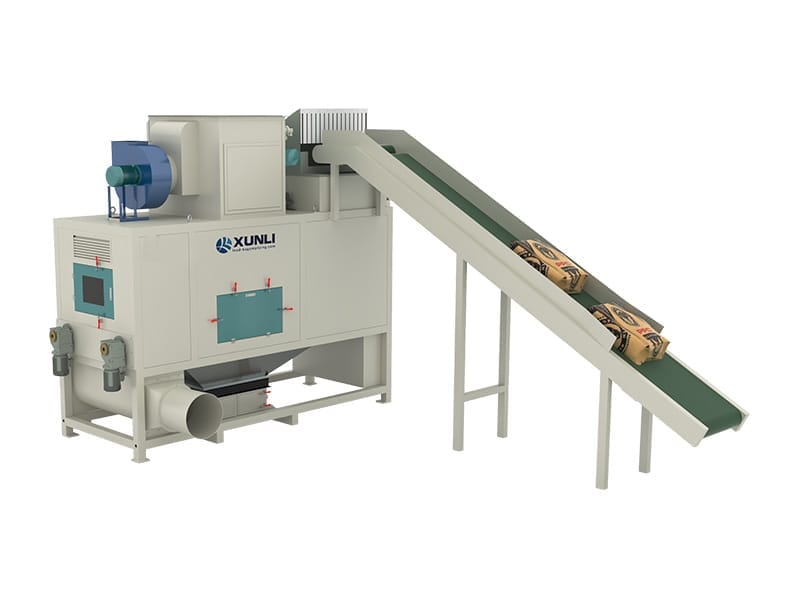

Parameters for: RAB-1000 standard unit
| Measures: | Width 1.36m * length 3.5m, height 3.1m |
| Energy consumption: | 7kwh/10KW; max 50L/min/0.5mpa |
| Energy consumption: | About 99.5%-99.99% emptying rate with 400- 600 bags/hour |
| Suitable for material: | Most powder, granule and pellets material |
| Suitable for bag: | Almost all kind of bags and sacks |
| Weight: | Around 3 ton, use 5 ton forklift to move the machine |
Equipment description
The working process of this automatic bag emptying machine: the belt conveyor feed the bags into the bag unpacking machine,the bags are cut open from top and bottom side by two rows of blades, the cut open bags fall into the drum screen above the hopper, the drum screen roll to get the material separated from the bag, the materials fall from the hole of drum screen into the hopper, the empty bags rolling through the drum screen and fall into the empty bag compactor to be collected and extruded out. This machine can explosion-proof configuration, stainless steel configuration or customized for different working conditions.

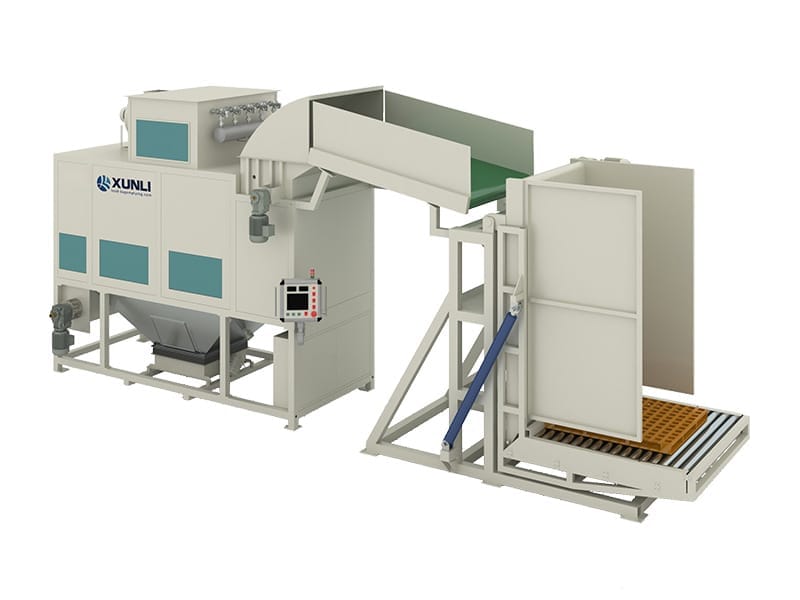

F-RAB-1350 FLIP-DRUM SCREEN BAG SLITTER
F-RAB-1350: It is RAB-1350 drum screen bag slitter equipped with a flip machine, It can handle the pallet bags, the processing capacity is over 600bag/hour, it also could be equipped with pallet stacker to get the empty pallets stacked automatically.
| No | Item | Description |
|---|---|---|
| 1 | Stack Flip machine | To rotate 90 degrees to feed the bags onto the belt conveyor |
| 2 | Belt conveyor | To feed the bags into the bag emptying machine |
| 3 | RAB-1350 Drum screen slitter | To open and empty the bags, and compact the empty bags |
Equipment description
The forklift load the whole pallet of bags on the roller conveyor line of the Flip machine, in which the roller conveyor line automatically corrects the position of the pallet of bags, and then the Flip machine turns upward by 90 degrees, and in the process of turning, the bags on the pallet will be scattered on the belt conveyor of the Flip machine at the same time. After the Flip machine is turned upward by 90 degrees, the belt conveyor on the Flip machine starts to convey the bags in batches into the Drum screen bag slitter for emptying. After all the bags are conveyed by the Flip machine to the bag emptying machine, the Flip machine turns downward 90 degrees to the original position and sends out the empty pallet.
If you have variety of different bags, different material and have high requirement on processing capacity, RAB-series drum bag slitter is recommended, it can be equipped with flip machine to fit for the pallet of bags, and also it can be equipped with pallet stacker to fulfill the function of piling up de pallets automatically. But to your notice, this machine will produce a certain amount of bag debris during the bag cutting process, if these debris will affect quality of your product, please find other kind of bag emptying machine for your production.
