Broader and better applicability
Lead advantages in performance and price
Comprehensive bag emptying solutions

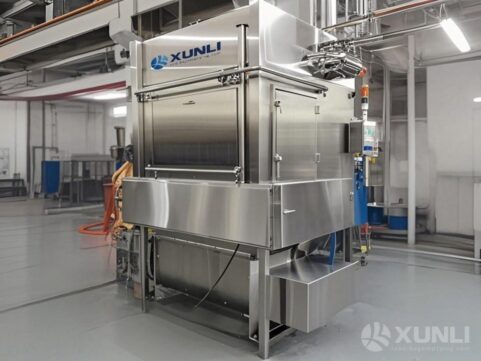

MTAB-800 MINI BAG SLITTER
MTAB-800 Mini bag slitter: It is suitable for the Pharmaceutical and Food industries. It can handle plastic, paper, and woven bags that are different in size and bag structure, with a high bag emptying rate of around 99.5%—99.99%. For a one-layer bag, near 0 bag debris enters the material with one knife cutting open the bag. It is equipped with a built-in spray ball to fulfill online water cleaning. The mini-size footprint is 1.3 m* 1.25 m.
Parameters for: MTAB-800 standard unit
| Measures: | Width 1.3m * length 1.25m, height 2m |
| Energy consumption: | 2kwh/3.2KW; max 100L/min/0.6mpa |
| Emptying rate/capacity: | About 99.5%-99.99% emptying rate with 100-150 bags/hour |
| Suitable for material: | Most powder, granule and pellets material |
| Suitable for bag: | Single and multilayer plastic, paper, laminated woven bag., etc. |
| Weight: | Around 1 ton, use 3 ton forklift to move the machine |
| Bag specification: | Suitable for outer length 500-800mm, width 350-550mm, height 100-200mm range |
Equipment description
The working process of this automatic bag emptying machine: the belt conveyor sends the bag into the inner part of the mini bag slitter, then the internal bag catching device grab the bag, one piece of blade cut open the bag from the bottom, the material falls into the hopper by gravity, the bag emptying device imitating human movement to shake the bag to empty the material out of the bag, in the end the empty bag to be automatically collected and extruded out by empty bag compactor. This machine can explosion-proof configuration, stainless steel configuration for different working conditions.
The machine is mainly made of 316 stainless steel, all the material used meet FDA requirement.
The internal of the machine can be washed directly by water through the spray ball built inside of the machine, to guarantee its internal cleanness.
On top the machine, there is interface connection to the hot air pipe, to get the machine dried after spray washing.
One piece of blade: This automatic mini bag emptying machine use a piece of blade in the process of bag cutting.
Near 0 bag debris: Non-tied bags in the form of single-layer bags, including plastic bags, coated woven bags, using a piece of blade to cut open bags, almost no bag debris generated.
Built-in spray ball: This machine support online water cleaning, and meets testing standards for riboflavin and electrical conductivity.
If you are Pharmaceutical and food enterprise, you need the machine to be small enough to fit into the limited space, and the machine can to be water cleaned online and hot air dried, XUNLI mini bag slitter is the best choice to meet your requirement.
